Function SyntaxLF (Length Field) / AF (Area Field)
Current Version1.3
View HTML VersionLengthAreaFieldV1-3.html

Program Description

Total Line Length Autocad

Sum Polyline Length Lisp The lisp create an automatic table based on the selected entities, the table contains two columns, the first is the layer name and the second is the sum polyline length for that layer. This β€œSum Polyline Length lisp” was created by Stefan M. One of the most talented programmer lispers out there. Divide polylines, arcs etc. We are going to look at one common problem that many of the AutoCAD users can already solve. However I will try to offer some additional information. Our task will be to divide polyline into X parts, or to devide it into parts of XX units. For example, we have fance and we want columns every 10 meters.

This program offers two commands to allow a user to generate a field expression referencing either the area or the length/perimeter/circumference of one or more selected objects.

Autocad Polyline Length Sum

In the case of selecting multiple objects, the field expression will reference the sum of the areas or lengths of all objects in the selection.

The user may opt to specify a point at which to create a new multiline text object housing the field expression, pick a table cell in which the field should be inserted, or select an existing single-line text, multiline text, multileader, or attribute to be populated with the field expression.

Length Field

Upon issuing the command syntax LF (Length Field) at the AutoCAD command-line, the program first prompts the user to make a selection of objects for which to return the length summation.

At this prompt, the user may select any number of Arcs, Circles, Lines, 2D Polylines (light or heavy), or 3D Polylines.

Polyline command in autocadAutocad Polyline Length Sum

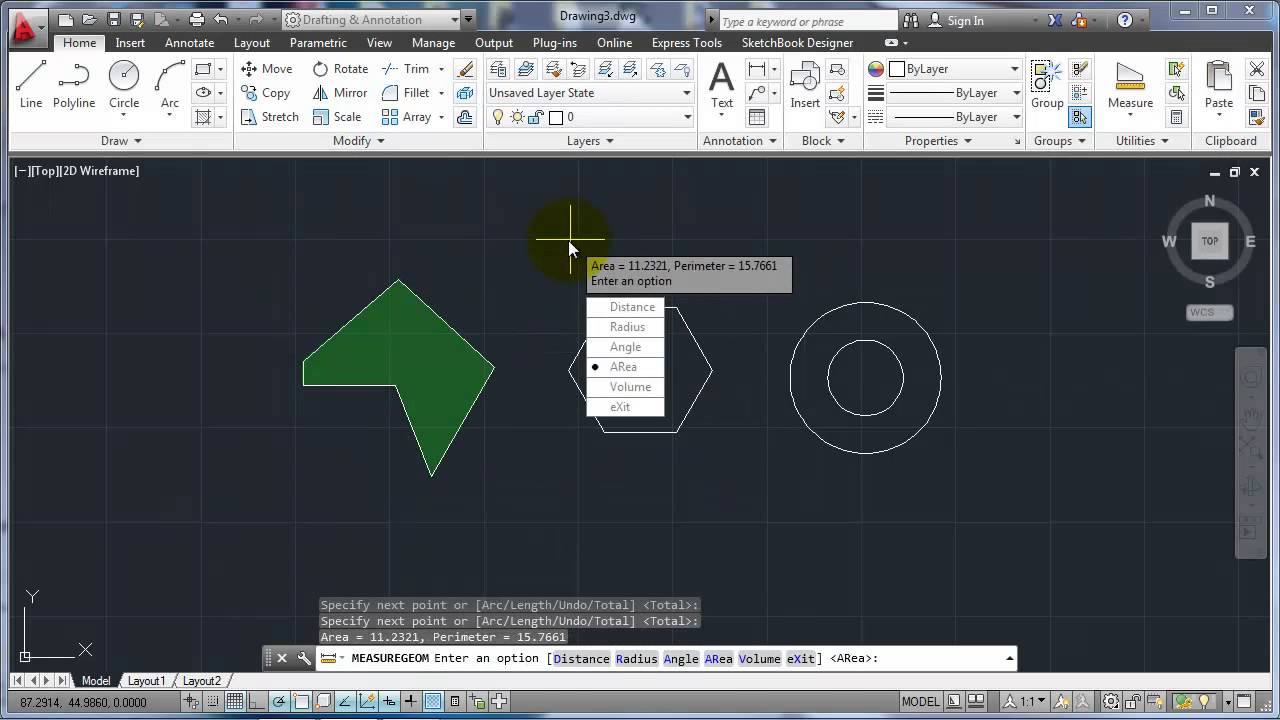

Area Field

Alternatively, upon issuing the command syntax AF (Area Field) at the AutoCAD command-line, the program will prompt the user to make a selection of objects for which to return the area summation.

At this prompt, the user may select any number of Arcs, Circles, Ellipses, Hatches, 2D Polylines (light or heavy), Regions, or Splines. If the selected object is open, the area is computed as though a straight line connects the start point and endpoint.

Autocad Lt Polyline Length Sum

Field Output

The user is then prompted to specify a point or table cell to insert a field expression referencing the summation of the lengths or areas of the selected objects.

Autocad Polyline Length Sum

At this prompt, the user may also choose the 'Object' option in order to populate the content of an existing annotation object with the field expression.

Upon choosing this option, the user may select any single-line text (DText), multiline text (MText), single-line or multiline attribute, attributed block, or multileader (MLeader) with either multiline text or attributed block content.

If the user selects an attributed block or attributed multileader with more than one attribute, the user is presented with a dialog interface listing the available attributes, and is prompted to select a destination for the field expression.

The user may optionally predefine the target block/multileader attribute by specifying the attribute tag where noted at the top of the program source code.

The resulting field expression will display the sum of the lengths or areas of the selected objects, formatted using the field formatting code specified at the top of each command definition.

Custom Commands

The available commands offered by the program are defined at the very top of the program source code. Additional custom commands which target specific attribute tags, or which employ varying field formatting codes may be defined by the user to accommodate drawings in which lengths or areas must be expressed in a variety of formats.

Four custom commands are already defined as examples:

Here, the general format of the definition of a command is:

Here, the <Target-Attribute-Tag> may be the tag name of an attribute reference to be populated with the field expression (such tag is not case-sensitive), or nil if the user is permitted to select any attribute.

For example:

The above custom command may be invoked at the AutoCAD command-line using the syntax mylf and targets an attribute with tag name 'TAG1' with the resulting length formatted:

  • in Decimal Units (%lu2)
  • to a Precision of 3 d.p. (%pr3)
  • with a Prefix of 'Length:' (%ps[Length:,])
  • with a Conversion Factor of 0.1 (%ct8[0.1])

Autocad Add Lengths Of Polylines

Length / Area Formatting Code

The field formatting code supplied as the second parameter for each custom command may be altered to display the length or area in a desired format:

To determine the correct formatting code to be used, perform the following steps:

  • Type FIELD at the AutoCAD command-line and press ENTER to open the Field dialog.
  • Select Objects from the 'Field Category' drop-down menu.
  • Select Object from the 'Field Names' section.
  • Select an object (with length or area) from the drawing by clicking the object selection button adjacent to the 'Object Type' box.
  • Select the Length or Area property from the 'Property' panel (or equivalent property for Arcs & Circles).
  • Configure the formatting options as desired.
  • Click OK and pick a point in the drawing to create a temporary MText Field.
  • Download & load my Field Formatting Code program.
  • Type fieldformat to run the program and select the temporary MText Field created earlier.
  • Following a valid selection, the field formatting code will be printed to the command-line, e.g.:

For more examples & information on how to supply a field formatting code to a custom command, please refer to the program page for my Quick Field program.

Instructions for Running

Please refer to How to Run an AutoLISP Program.

Autocad Sum Line Lengths


Sum polyline length Autocad

looking for a way to sum up your length of polylines ?

Here is the lisp for you , Not just it will do the summation for you, it will also label it as text . ( normally i move the text labels to a different layer that mark as β€œUn-Plot” so later i will double check it according to my BOM )

The Command LPL will work for LINE, SPLINE, LWPOLYLINE, POLYLINE, ARC, CIRCLE, ELLIPSE so you are fully covered πŸ™‚

just download the file and load it with APPLOAD command and type : LPL in the command line to start the program

Download Link : LPL-Sum polyline length
