Carrier chiller alarm codes; The following list gives a complete description of each alarm code and its possible cause.

  • Summary of Contents for Carrier AQUASNAP 30RA010-055 Page 1: Features/Benefits Costs less right from the start Only Carrier’s AquaSnap chillers fea- ture a compact, all-in-one package de- sign that.
  • 15 diagnostic functions. Carrier 30 Series chillers’ ComfortLink controls provide features such as chilled water temperature reset, demand limiting, compressor wear minimization and protection, temperature and pressure displays and diagnostic functions. These controls result in higher chiller reliability, simplified training and more.
  • Carrier’s exclusive remote, hand-held diagnostic unit — the Navigator™ module — provides expanded informa-tion on virtually every aspect of the AquaSnap chiller’s operation, helping technicians to quickly diagnose prob-lems and even prevent them from occurring. The Navigator provides con-venience and powerful information in.

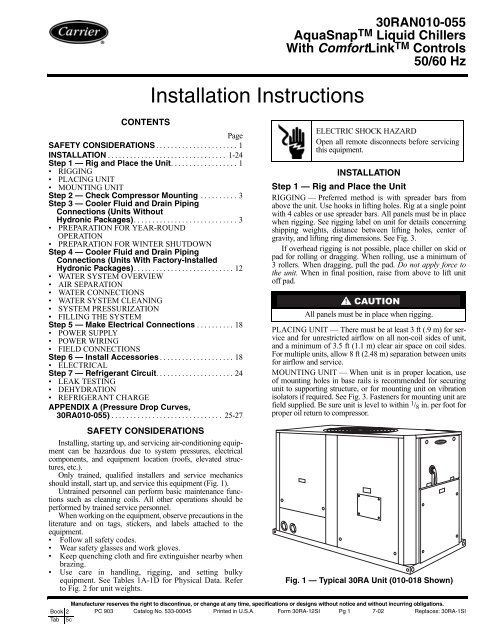

Carrier 30ran045

Alarm CodesDescription
1Evaporator entering fluid thermistor failure
2Evaporator leaving fluid thermistor failure
3Condenser entering fluid thermistor failure
4Condenser leaving fluid thermistor failure
5Condenser entering fluid thermistor failure
6Condenser leaving fluid thermistor failure
7Outdoor temperature sensor fault
8CHWS (master/slave) fluid thermistor fault
9Compressor A1, discharge gas sensor
10Compressor A2, discharge gas sensor
11Compressor B1, discharge gas sensor
12Compressor B2, discharge gas sensor
13External 0-10 V dc signal fault
14Discharge pressure transducer failure,circuit A
15Discharge pressure transducer failure, circuit
16Suction pressure transducer failure, crt A
17Suction pressure transducer failure, crt B
18Oil pressure transducer failure, compr A1
19Oil pressure transducer failure, compr A2
20Oil pressure transducer failure, compr B1
21Oil pressure transducer failure, compr B2
22Economizer A1 transducer failure
23Economizer A2 transducer failure
24Economizer B1 transducer failure
25Economizer B2 transducer failure
26Pressure sensor failure - coil pump down
circuit A
27Pressure sensor failure - coil pump down
circuit B
28Fault in the motor cooling valve position
sensor, circuit A
29Fault in the motor cooling valve position
sensor, circuit B
30Loss of communication with SCPM A1 board
31Loss of communication with SCPM A2 board
32Loss of communication with SCPM B1 board
33Loss of communication with SCPM B2 board
34Loss of communication with EXV board
35Loss of communication with fan board #1
36Loss of communication with fan board # 2
37Loss of communication with auxiliary board
type 1
38Loss of communication with heat reclaim or
evaporator heater board
39'CCN/clock board' fault
40Control box thermostat fault or phase reversal
41Unit emergency stop
42Initial factory configuration
43-nIllegal initial factory configuration
43-1Compr A capacity too high
43-2Compr B2 configured and compressor B1 absent
43-3Fan configured for a water-cooled
43-4Fans not configured
43-5Heat reclaim option configured
and reclaim sensors configured
44Discharge pressure circuit A too
45Discharge pressure circuit B too
46Oil solenoid failure, compressor
47Oil solenoid failure, compressor
48Oil solenoid failure, compressor
49Oil solenoid failure, compressor
50Pre-start oil pressure,
compressor A1
51Pre-start oil pressure,
compressor A2
52Pre-start oil pressure,
compressor B1
53Pre-start oil pressure,
compressor B2
54Oil level circuit A low
55Oil level circuit B low
56Low saturated suction temp, crt A
57Low saturated suction temp,
circuit B
58High saturated suction temp,
circuit A
59High saturated suction temp,
crt B
60Low discharge superheat,
circuit A
61Low discharge superheat, crt B
62Max. oil pressure difference,
compressor A1
63Max. oil pressure difference,
compressor A2
64Max. oil pressure difference,
compressor B1
65Max. oil pressure difference,
compressor B2
66Loss of commuincation with
System Manager
67Loss of communication with
master or slave unit
68Low oil pressure compr A1
69Low oil pressure compr A2
70Low oil pressure compr B1
71Low oil pressure compr B2
72Evaporator frost protection
73Condenser frost protection, circuit
74Condenser frost protection, circuit
75Evaporator water flow control
76Condenser water flow loss
77High current, compressor A1
78High current, compressor A2
79High current, compressor B1
80High current, compressor B2
81Pump 1 fault
82Pump 2 fault
83Heat reclaim mode fault, circuit A
84Heat reclaim mode fault, circuit B
85Water flow fault, heat reclaim
86-nnMaster/slave configuration fault
87-nMaintenance alert
87-1Charge too low
87-2Water loop too low
87-3Air filter maintenance delay elapsed
87-4Pump 1 maintenance delay elapsed
87-5Pump 2 maintenance delay elapsed
87-6Water filter maintenance delay

Carrier 30RA-200-0576 PEE Air Cooled Water Chiller The AquaSnap 30RAP chiller is an effective all-in-one package that is easy to install and own. The chiller operates quietly and efficiently under all operating conditions.

Carrier chiller alarmcodes

  • 30GX and 30HXC series
  • PRO-DIALOG Control
  • Screw-Compressor Air- and
  • Water-Cooled Liquid Chillers
  • 50 Hz

The PRO-DIALOG Plus control system has many fault tracing aid functions. The local interface and its various menus give access to all unit operating conditions. The test function makes it possible to run a quick test of all devices on the unit. If an operating fault is detected, an alarm is activated and an alarm code is stored in the Alarm menu.



Carrier 30ran055 Manual

Resetting alarms

When the cause of the alarm has been corrected the alarm can be reset, depending on the type, either automatically on return to normal, or manually when action has been taken on the unit. Alarms can be reset even if the unit is running. This means that an alarm can be reset without stopping the machine. In the event of a power supply interrupt, the unit restarts automatically without the need for an external com- mand. However, any faults active when the supply is inter- rupted are saved and may in certain cases prevent a circuit or a unit from restarting. A manual reset must be run from the main interface using the following procedure:


Carrier 30ran030
